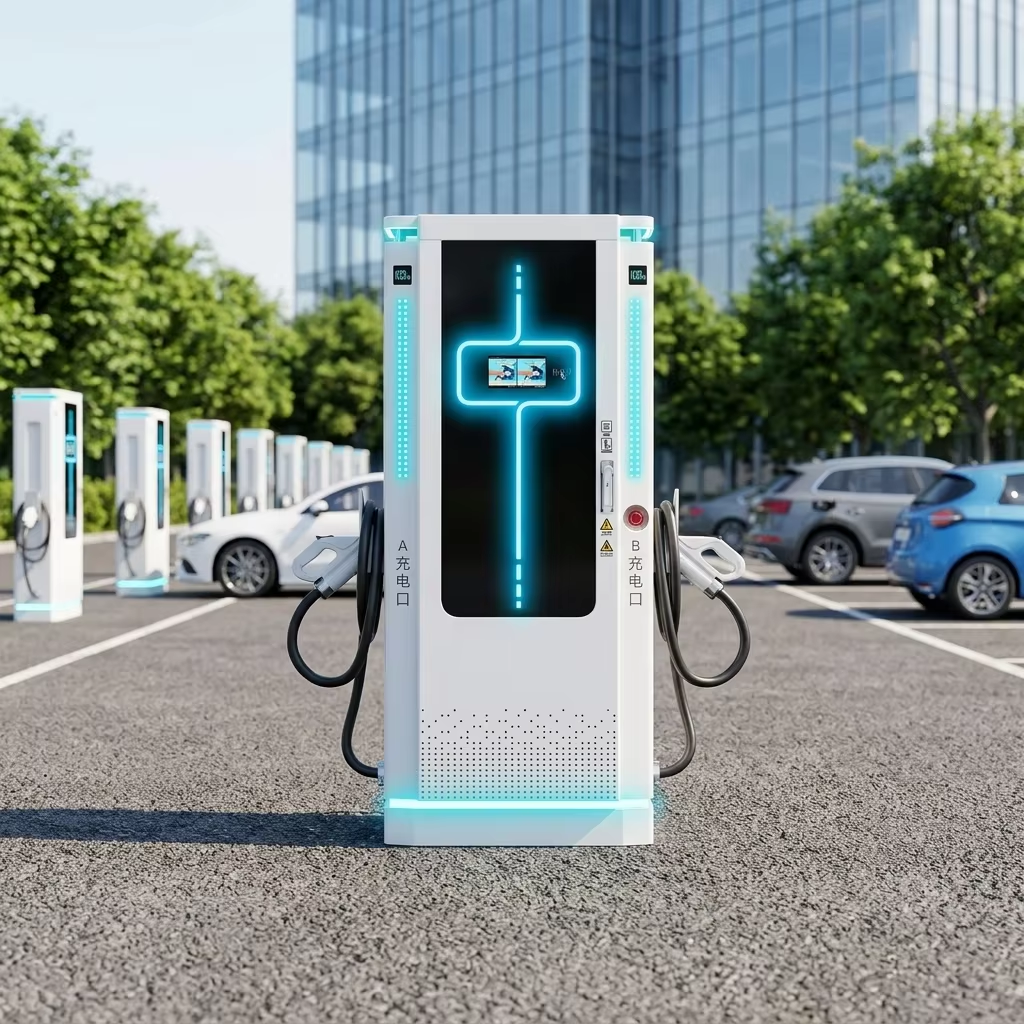

DC-DC Ultra-Fast Charger
200kW / 360kW / 480kW
The DC-DC Ultra-Fast Charger (XNYZY09-DCDC) is a ultra-fast liquid-cooled charger rated at 200kW / 360kW / 480kW, designed for commercial and highway charging sites. 200-950Vdc Input and Dual Guns. Output voltage ranges from 200-1000Vdc, supporting all major EV platforms including 800V vehicles.
Features
- 200-950Vdc Input
- Dual Guns
- 98.5% Peak Efficiency
Use Cases
Long-Distance Highway Corridor
Enable 10-minute top-ups for next-gen 800V EVs along major highway corridors. Liquid-cooled cables handle sustained 400-600kW without thermal throttling.
Premium Urban Charging Hub
Anchor high-traffic urban charging hubs where drivers expect sub-15-minute charge times. Premium positioning justifies higher per-kWh session pricing.
Taxi & Ride-Hail Rapid Turnaround
High-cycle taxi and ride-hail fleets achieve full-shift charge in under 15 minutes between fares, eliminating vehicle downtime and supporting 24/7 fleet utilization.
Frequently Asked Questions
Liquid-cooled ultra-fast chargers use a closed-loop coolant system to manage heat in the charging cable and connector, enabling charge rates of 320-600 kW without overheating. This allows 80% charge in under 10 minutes for compatible vehicles.
Ultra-fast chargers output via CCS1, CCS2, or CHAdeMO connectors at up to 1000V. Compatibility depends on the vehicle's maximum acceptance rate. Most new 800V platform EVs (Porsche Taycan, Hyundai Ioniq 5, etc.) can accept full ultra-fast power.
Quarterly inspections of coolant levels, bi-annual cable integrity checks, and annual software firmware updates. Hangtai provides remote diagnostic support to minimize on-site maintenance visits.
Specifications
| Dimensions | 850 × 700 × 1780 mm |
| Rated Power | 200 / 360 / 480 kW |
| Weight | ~144-256 kg |
| Input Voltage | 200-950Vdc |
| Output Voltage | 200-1000Vdc |
| Max Efficiency | 98.5% |
| IP Rating | IP54 |
| Protocol | OCPP 1.6/2.0.1 |
Price
$42,000
