AC Commercial Charger
7kW / 14kW / 22kW / 44kW
The AC Commercial Charger (XNYJ04) is a Level 2 AC wallbox rated at 7kW / 14kW / 22kW / 44kW, designed for home and commercial parking environments. Single/Dual Guns and 4G All-Network. Output voltage ranges from AC 220V ±15%, supporting Type 2, J1772 and GB/T connectors globally.
Features
- Single/Dual Guns
- 4G All-Network
- Type 2 / J1772 / GB/T
Use Cases
Residential Garage Installation
Mount on a standard 220V or 380V residential circuit. App-controlled scheduling lets owners charge overnight during off-peak utility rates, saving 30-50% on electricity costs versus on-demand public charging.
Workplace Employee Charging
Install in employee parking as a corporate EV benefit. RFID or app authentication, with usage reports exportable to HR for tax-compliant home-charging reimbursement programs.
Hotel & Hospitality Guest Charging
Offer overnight charging to guests as an amenity. Drivers pay via app or RFID; operators track revenue per port through the OCPP backend without on-site staff.
Frequently Asked Questions
AC chargers supply alternating current to the vehicle's onboard charger, which converts it to DC. Charging speed is limited by the vehicle's onboard charger capacity (typically 7-22 kW). DC fast chargers bypass the onboard charger and deliver DC power directly to the battery at 20-400+ kW, enabling an 80% charge in 15-30 minutes.
Hangtai AC chargers support Type 2 (European standard), J1772 (North American) and GB/T (Chinese standard) connectors, covering the vast majority of EVs sold globally. Custom connector configurations are available for OEM orders.
Commercial AC chargers require a dedicated 380 VAC or 220 VAC circuit rated for the charger's power draw. Wall-mounted and pedestal options are available. Hangtai provides installation guidance and can recommend certified local partners.

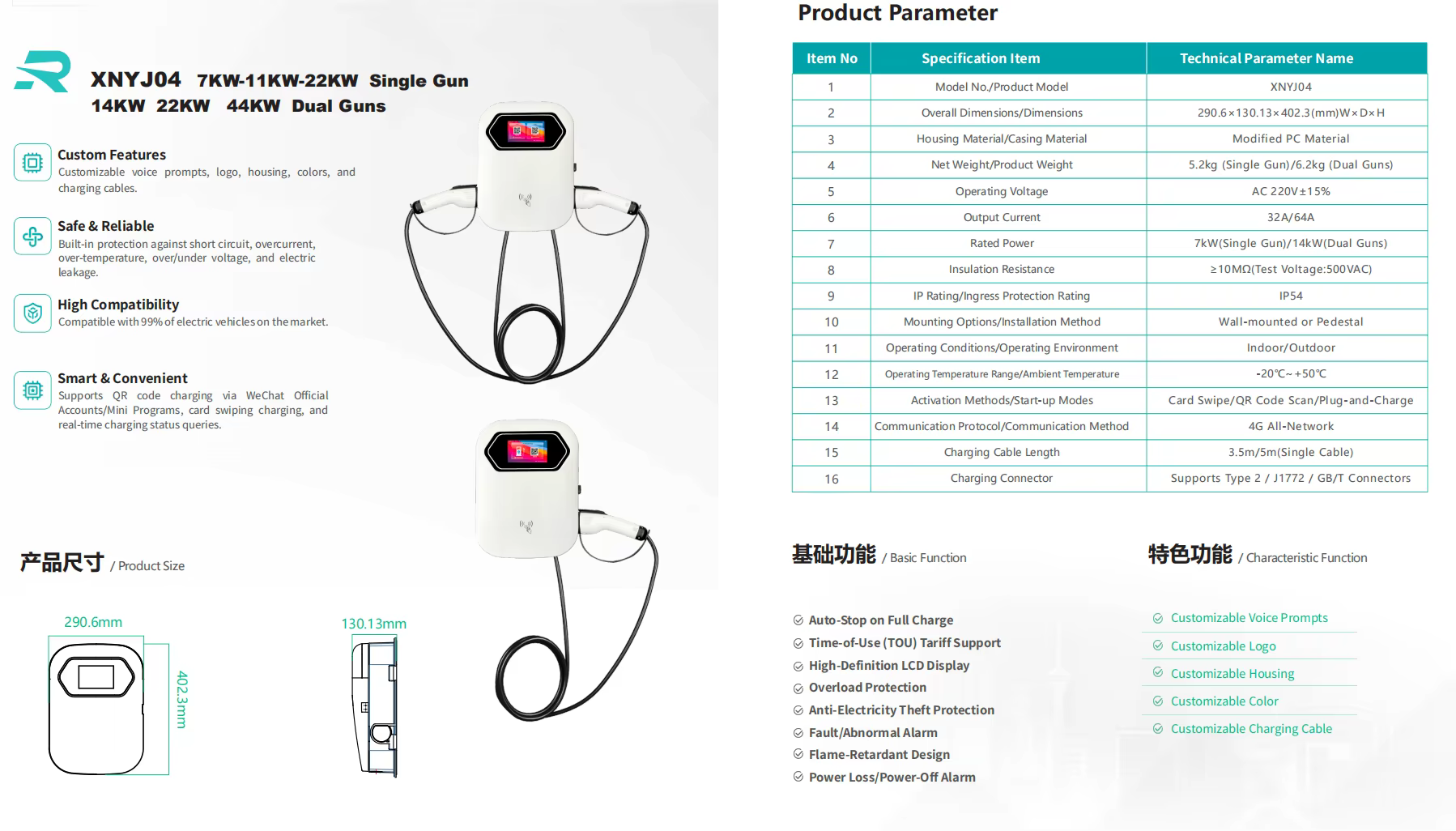

Specifications
| Dimensions | 290.6 × 130.13 × 402.3 mm |
| Material | Modified PC |
| Net Weight | 5.2 kg (Single) / 6.2 kg (Dual) |
| Operating Voltage | AC 220V ±15% |
| Rated Power | 7kW / 14kW (Dual) |
| IP Rating | IP54 |
| Installation | Wall-mounted / Pedestal |
| Activation | QR Code / Card Swipe / Plug-and-Charge |
Price
$1,299
